XCMT12D
特點：
Case: Black ABS
Pin: Tin-Plated Copper
規(guī)格:
◆Value applying at (rated voltage,2048Hz , 1/2 duty square wave)
◇Value applying at (2048Hz,sine wave,measuring current 60μA)
Case: Black ABS
Pin: Tin-Plated Copper
規(guī)格:
|
type
|
unit
|
XCMT12D2001AP
|
XCMT12D2001BP
|
XCMT12D2001CP
|
|
◆Min. Sound Output at 10cm
|
dB
|
85
|
80
|
80
|
|
Rated Voltage
|
V
|
1.5
|
1.5
|
1.5
|
|
Operating Voltage
|
V
|
1~2
|
1~2
|
1~2
|
|
Resonant Frequency
|
Hz
|
2048
|
2048
|
2048
|
|
◆Max. Current Consumption
|
mA
|
30
|
15
|
12
|
|
Coil Resistance
|
Ohm
|
16±4
|
42±6
|
50±7.5
|
|
◇Coil Impedance
|
Ohm
|
40
|
120
|
140
|
|
Operating Temperature
|
℃
|
-20~+60
|
-20~+60
|
-20~+60
|
|
Storage Temperature
|
℃
|
-30~+70
|
-30~+70
|
-30~+70
|
|
Weight
|
g
|
2
|
2
|
2
|
◇Value applying at (2048Hz,sine wave,measuring current 60μA)

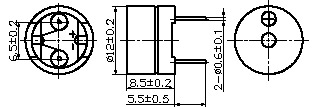

尺寸：（單位：mm） |

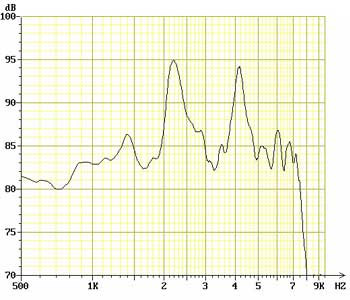

錄放幅頻響應： |
