XCMT12A
特點：
Case: Black Noryl
Pin: Tin-Plated Copper
Wave Solderable & Washable
規格:
◆Value applying at (rated voltage,2400Hz, 1/2 duty square wave)
◇Value applying at (2400Hz,sine wave,measuring current 60μA)
Case: Black Noryl
Pin: Tin-Plated Copper
Wave Solderable & Washable
規格:
|
type
|
unit
|
XCMT12A2405PX
|
XCMT12A2401PX
|
XCMT12A2412PX
|
|
◆Min. Sound Output at 10cm
|
dB
|
80
|
85
|
85
|
|
Rated Voltage
|
v
|
1.5
|
5
|
12
|
|
Operating Voltage
|
v
|
1~2
|
3~7
|
7~16
|
|
Resonant Frequency
|
Hz
|
2400
|
2400
|
2400
|
|
◆Max. Current Consumption
|
mA
|
70
|
40
|
40
|
|
Coil Resistance
|
Ohm
|
6.5±3
|
47±5
|
140±14
|
|
◇Coil Impedance
|
Ohm
|
16
|
80
|
240
|
|
Operating Temperature
|
℃
|
-20~+70
|
-20~+70
|
-20~+70
|
|
Storage Temperature
|
℃
|
-30~+80
|
-30~+80
|
-30~+80
|
|
Weight
|
g
|
2
|
2
|
2
|
◇Value applying at (2400Hz,sine wave,measuring current 60μA)

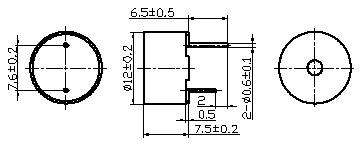

尺寸：（單位：mm） |
錄放幅頻響應： |
