XCMT09F
特點：
Case: PPS Black
Pin:Tin plated copper
Reflow Solderable And Washable
規格:
◆Value applying at (rated voltage, resonant frequency, 1/2 duty square wave)
◇ Value applying at (resonant frequency, sine wave,measuring current 60µA)
Case: PPS Black
Pin:Tin plated copper
Reflow Solderable And Washable
規格:
|
TYPE
|
UNIT
|
2701S
|
2703S
|
|
◆Min. Sound Output at 10cm
|
dB
|
85
|
85
|
|
Rated Voltage
|
V0-p
|
1.5
|
3
|
|
Operating Voltage
|
V0-p
|
1～2
|
2～4
|
|
Resonant Frequency
|
Hz
|
2730
|
2730
|
|
◆Max. Current Consumption
|
mA
|
80
|
80
|
|
Coil Resistance
|
Ω
|
5.5±1
|
15±2
|
|
◇Coil Impedance
|
Ω
|
15
|
40
|
|
Operating Temperature
|
℃
|
-20～+70
|
-20～+70
|
|
Storage Temperature
|
℃
|
-30～+80
|
-30～+80
|
|
Weight
|
g
|
0.6
|
0.6
|
◇ Value applying at (resonant frequency, sine wave,measuring current 60µA)

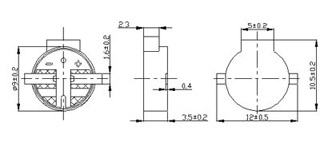

尺寸：（單位：mm） |

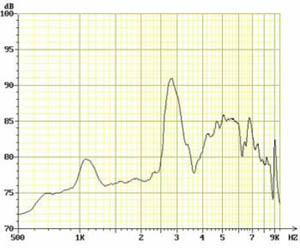

錄放幅頻響應： |
