首頁>>產品中心>>蜂鳴器(蜂鳴片)

XCMT16A


特點：
Case: Black Noryl
Pin: Tin-Plated Copper
Wave Solderable & Washable

規格:
type
unit
XCMT16A2001PX
XCMT16A2006PX
XCMT16A2012PX
◆Min. Sound Output at 10cm
dB
80
85
85
Rated Voltage
V
1.5
6
12
Operating Voltage
V
1~2
4~8
9~15
Resonant Frequency
Hz
2048
2048
2048
◆Max. Current Consumption
mA
18
40
40
Coil Resistance
Ohm
27±3
50±5
115±12
◇Coil Impedance
Ohm
80
110
200
Operating Temperature
℃
-20~+70
-20~+70
-20~+70
Storage Temperature
℃
-30~+80
-30~+80
-30~+80
Weight
g
7
7
7
◆Value applying at (rated voltage,2048Hz, 1/2 duty square wave)
◇Value applying at (2048Hz,sine wave,measuring current 60μA)

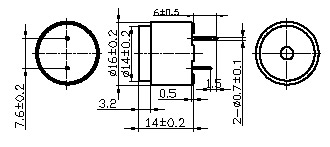

尺寸：（單位：mm）

上一個: XCMT12E

下一個: XCMT25A
